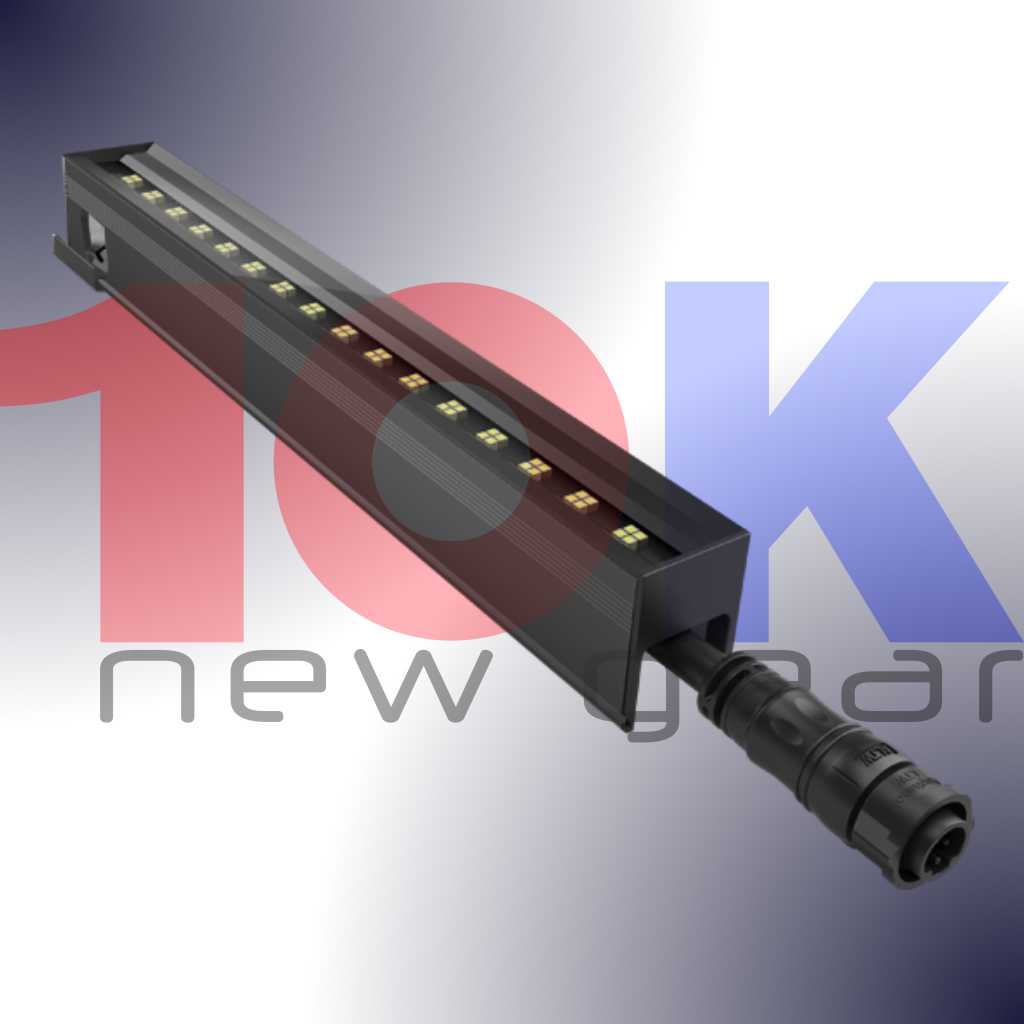

SGM VPL 305-20 LED video pixel linear

Description

SGM VPL 305-20 LED video pixel linear

Main features and specification for SGM VPL 305-20:

• IP66-rated Video Pixel Linear luminaire
• 16 Quad Full-Color LED Pixel Clusters (64 Full-Color LEDs per unit)
• Power and data in one cable with no need for external power supplies
• Long run on a single circuit
• 19.05 mm pixel pitch and 120º viewing angle
• 298 millimeter length per luminaire with integrated power supply
• IK05-rated, C-5M (marine), UV and corrosion resistant
• 16 bit control, Real time remote monitoring, Auto addressing

Optical Data

• LED expected lifetime: 50,000 hours
• Lens: Clear 120°
• Lightsource: 64 x high-power RGB LEDs
• Pixel per meter: 52 px/m
• Pixel Pitch: 19.05 mm
• Pixel size: 6 x 6 mm Quad LED Pixel Clusters

Photometric

• Color temperature range: 2000K – 10000K
• Luminance: 2100 nits (modular spacing 35mm); 2100 Nits (cd/m2)

Physical

• Color options: Black – RAL 9004; AluGrey
• Corrosion class: C5-M (ISO 12944)
• IK Rating: IK05
• IP class: IP66
• Material: Aluminium
• Net dimensions: 298 x 52 x 38 mm
• Net dimensions inches: 11.7 x 2 x 1.5 inches
• Net weight: 0.4 kg (0.9 lbs)

Features for SGM VPL 305-20

• Addressable pixels: 16
• Auto adressing: Yes
• Calibration: Full color calibration; White calibration
• Dimming: Electronic
• On-fixture test: Yes
• Remote monitoring: Yes (Real Time)
• View angle: 120°

Electrical

• AC Power, nominal: 200 – 240V 50/60Hz
• Electrical Protection: Overload protection with automatic recover
• Max Inrush Current: 1.9 A
• Max power consumption: 9 W
• Power factor: 0.98 PF (230 V) PF (230V)
• Power per meter: 29 W/m
• Power Supply Unit: Auto-ranging electronic switch-mode
• Standby power consumption: 2.8 W
• Typical power consumption: 9 W

Programming and Control for SGM VPL 305-20

• 16-bit control: Red, Green, Blue
• Data communication: 100 Mb
• Data distribution: SGM VP Processor; SGM Power and Data Joiner
• DMX channels: 1, 3, 6, 12, 24, 48 or 96
• DMX modes: 8
• Protocol: ArtNet (up to 120 Hz); sACN; SGM VP-Net
• Setting and addressing: SGM VP Administrator

Connections

• Data / Power input: Multicore 8 pin cable 1xShield, 2xPower, 4xSignal
• Data / Power output: Multicore 8 pin cable 1xShield, 2xPower, 4xSignal

Installation

• Orientation: Any
• Rigging possibilities: Installation mounting profiles (not included); Hanging / horizontal mounted or ceiling / wall mount (optional)

Thermal

• Cooling: Passive
• Humidity (max.): 98 %
• Temperature range, Operating: -20°C to 60°C
• Temperature range, Start-up: -20°C to 60°C
• Temperature range, Storage: -40°C to 80°C
• Thermal Protection: Automatic overtemperature protection

Included items

• Safety instructions and installation quick guide

SGM VPL 305-20 is a video pixel linear designed to create powerful pixel mapping and media effects. It is a powerful and versatile tool for linear and radial installations where high-visibility and a very flexible setup are essential. This easily integrated fixture is suitable for a wide range of applications, including media façades, touring concerts, stadiums, theme parks or just about any fixed or temporary tight space installation. The Video Pixel Linears are available in different lengths with multiple accessories like Opal lenses, brackets, and extension cables.
