10K fEEbEE is an LED Update Kit for Source 4 conventional luminaires. Available in 5 modifications:
Daylight – Daylight only 5600°K
RGBACL – Red, green, blue, amber, cyan, lime
RGBWA – Red, green, blue, white, amber
Tuneable White – Tuneable white variable from 3000° to 5700°K
Tungsten -Tungsten only 3000°K
Main features for 10K fEEbEE:

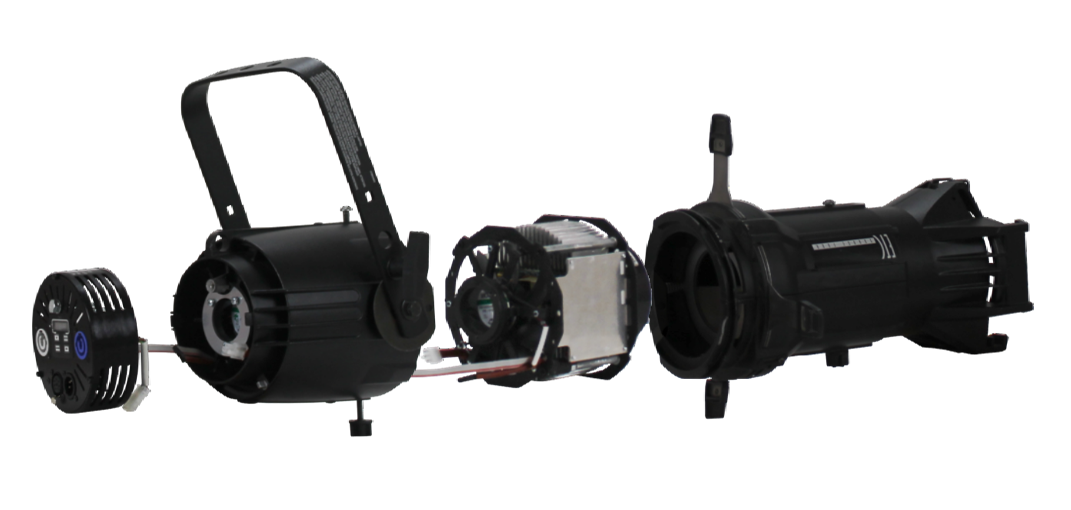

Simple – Remove the reflector and insert the LED light engine. Takes around 5 minutes.
Light Quality – Consistent output Excellent colour rendering CRI 93-98. Constant colour temperature. Light output equivalent to a 750w halogen lamp. Flicker free. Compatible with all ETC S4 lens options.
Variable Colour Temperature – Colour temperature control from 2300 ° K to 10,000° K. CRI from 93 to 98 depending on the unit. Halogen lamp emulation function.
Low Power Consumption – Maximum 170W. Neutrik Powercon connector in and link out.
Dimming – Dimming control via 8 or 16 bit DMX. Uniform and smooth operation down to 0%
Heat – Low heat production. Cool enough to use Acetate sheet gobos.
Noise – Fan speed can be adjusted to reduce noise.
Minimal Maintenance – LED life 30,000 hours.
Environmentally Friendly – Recycling existing luminaires and flight cases.
Manufactured and Assembled in EU – Utilising reliable, high quality components.
The fEEbEE is a more sophisticated LED lamp replacement for the ETC S4 fixture. It has these advantages over the ETC’s own 4WRD LED lamp unit:
- Higher CRI
- Brighter
- Even field of light
- Model 10-35-96 LED T Engine Tunable 3000 to 5700K Min CRI 96 3000K Min CRI 94 5700K
- Model 10-WA-90 LED RGBWA or 10-CL-98 LED RGBACL Engine giving flexibility to have colour mixing
- DMX adjustment of the fan speed. Includes silent mode
- Linear dimming, especially in the initial phase
- 2 dimming curves. LED frequency adjustment. DMX data speed control. DMX response speed control
- Standard power and signal connectors with the possibility of connecting more projectors on the same circuit
- Dimensions of the projector remain the same. No need to change flight cases
- Possibility to update over time. The LED used is a BRIDGELUX COB which is periodically updated by the manufacturer with improvements every year
Give a new lease of life to your Tungsten Source Four… Convert it to an LED Version with 10K fEEbEE!
