Chauvet Professional WELL Com

Description

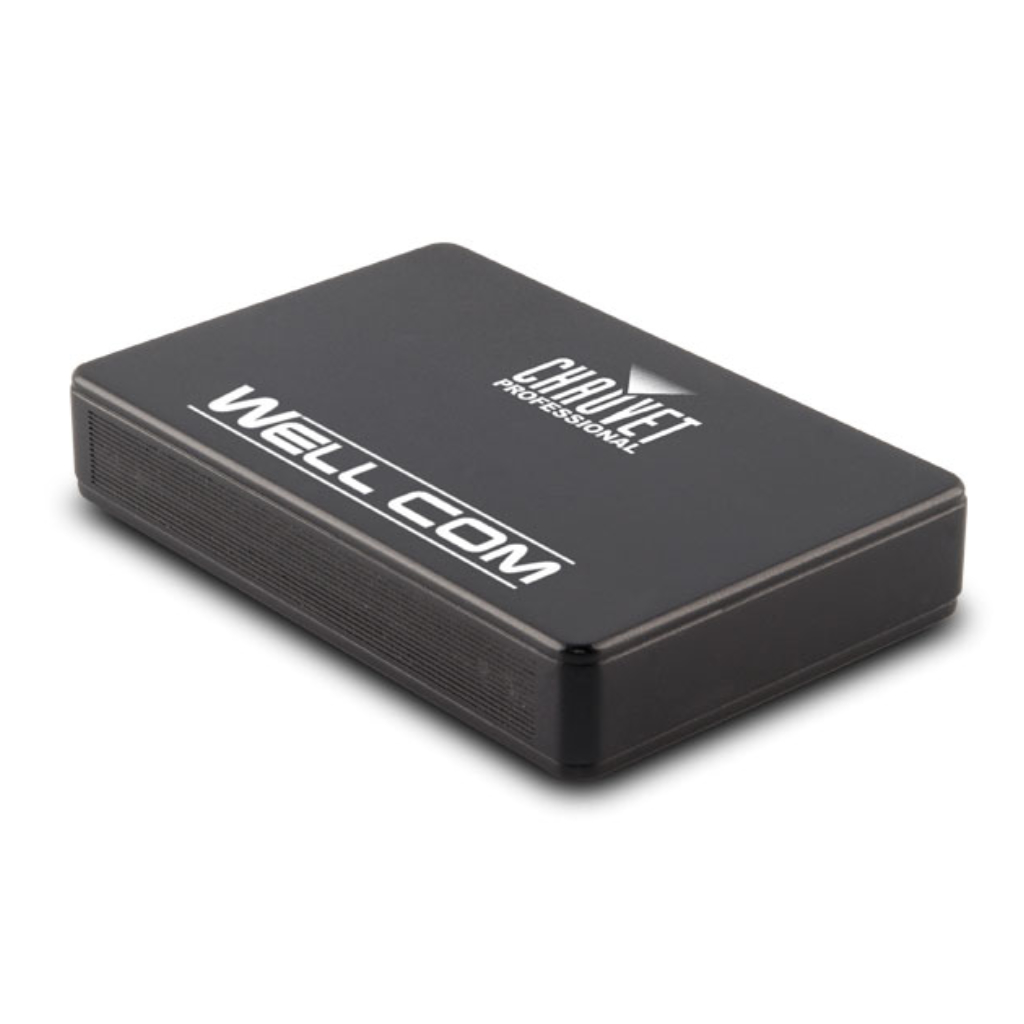

Chauvet Professional WELL Com Wireless Controller (W-DMX transmitter)

Main features and specification for Chauvet Professional WELL Com:

• Compact, easy-to-use battery powered Wi-Fi™ receiver and wireless WDMX™ transmitter combined with an Android™ or iOS® based control app
• 8 hours of usage on a full charge
• Compatible with Android™ and iOS® on both smartphones and tablets
• Output can be used in wireless WDMX™ or wired DMX protocols
• Full universe of DMX available for programming larger events
• Built in color picker and color macros for use with RGB, RGBA, and RGBW wash fixtures
• Program up to 24 steps per scene with selectable fade and hold times for building chases and cues
• A total of 18 scenes available for playback
• Easy to navigate user interface
• Line-of-sight distance up to 200 m

Dynamic Effects

• Standalone Color Mixing: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Construction / Physical

• Dimensions: 5.13 x 3.34 x 0.98 in (130.4 x 85 x 25 mm)
• Weight: 0.6 lb (0.3 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

Connections

• Power Input: Micro USB-B Male
• Data Connectors: 5-pin XLR
• Cable Length (Dmx): 17 in (0.43 m)
• Cable Length (power): 3 ft (0.91 m)

Control

• Control Protocol: DMX, W-DMX™, Wi-fi
• DMX Channels: 512

Electrical

• Input Voltage: 5 VDC, 1600 mA (external power supply: 100-240 VAC 47/63 Hz)
• Power and Current: 7 W, 0.125 A @ 120 V, 60 Hz
• Power and Current: 6 W, 0.078 A @ 208 V, 60 Hz
• Power and Current: 6 W, 0.075 A @ 230 V, 50 Hz

Battery

• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 8 hours
• Battery Life: 8 hours
• Battery Power: 3.7 V, 6,000 mAh

Certifications / Qualifications

• CE, FCC
• IP Rating: IP20, dry location

Included

• WELL COM
• USB-A Male to Micro USB-B Male (3 ft)
• 5-pin DMX adaptor
• External power supply

Required Accessories

• WELL COM App available for download on iOS or Android store

Optional Accessories

• DMX Cables

WELL Com makes it possible to control your W-DMX enabled lights from a smartphone or a tablet. This wireless interface hands you full control over your fixtures including the ability to build and save static looks or timed chases via a free downloadable app that supports a full universe of DMX and can save scenes and chases.

The WELL Com app is available for both Android and iOS® in both phone and tablet versions.
