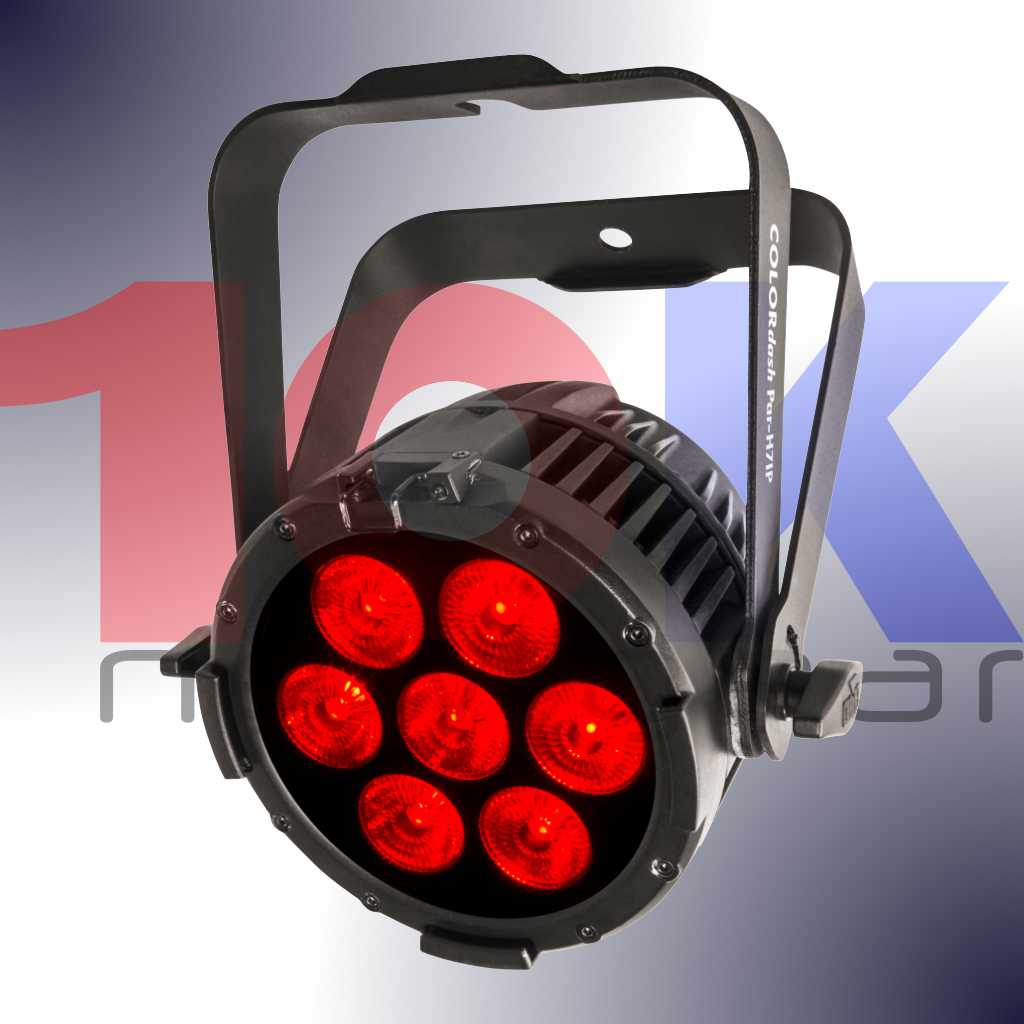

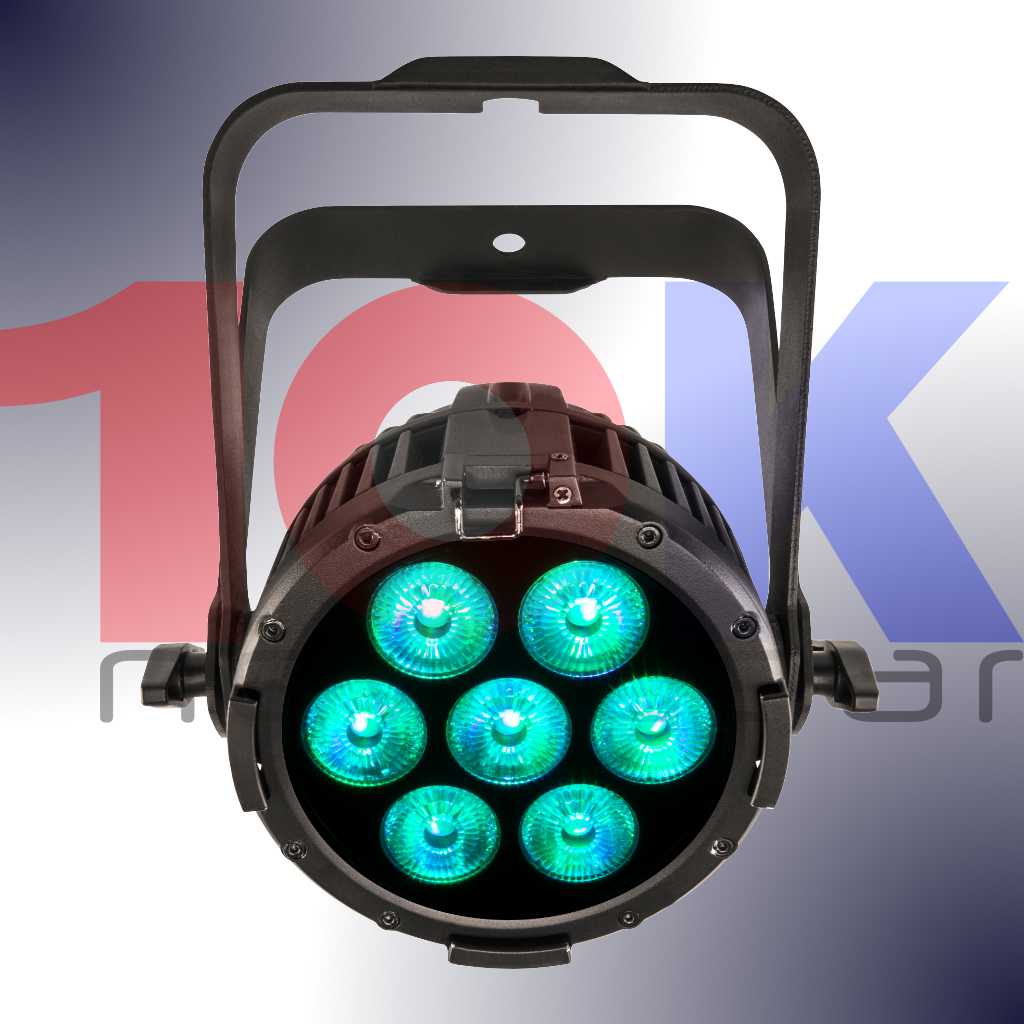

Chauvet Professional COLORdash Par H7IP

Description

Chauvet Professional COLORdash Par H7IP

Main features and specification for Chauvet Professional COLORdash Par H7IP:

• Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
• At home in any weather conditions with IP rated power and DMX connections
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• RDM (Remote Device Management) for added flexibility
• Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
• Easy to read OLED display with password protection and touchscreen interface
• Advanced optics provide exceptional color mixing and high efficiency
• Double-bracketed yoke doubles as floor stand

Optical

• Light Source: 7 LEDs (hex-color RGBAW+UV) 10 W, (500 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10,000 K
• Beam Angle: 21°
• Field Angle: 47°
• Illuminance (total): 674 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects of Chauvet Professional COLORdash Par H7IP

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

Construction / Physical

• Dimensions: 11.02 x 9.44 x 6.06 in (280 x 240 x 154 mm)
• Weight: 7.8 lb (3.6 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.5 in (165 mm)

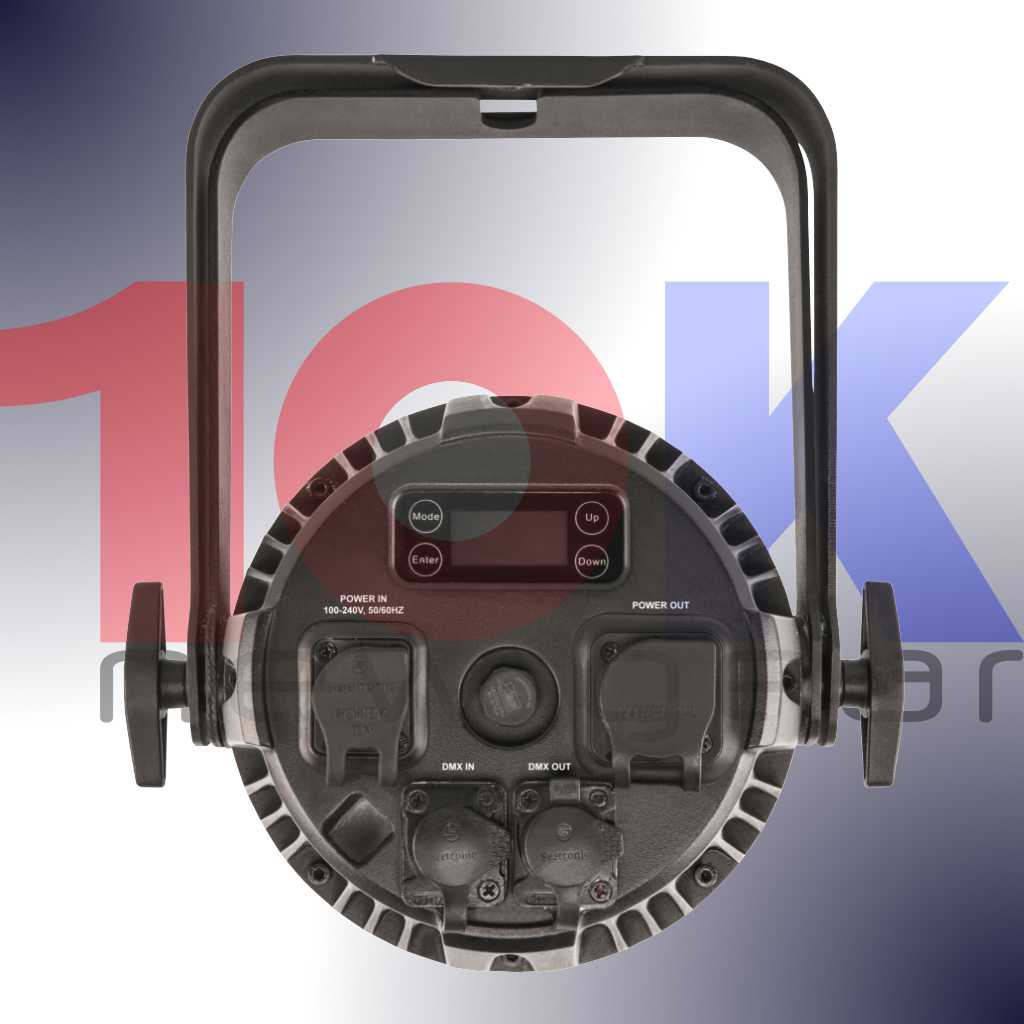

Connections

• Power Connection: Edison(Local plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)

Control for Chauvet Professional COLORdash Par H7IP

• Control Protocol: DMX, RDM
• DMX Channels: 6, 8 or 13
• Modes/Personalities: 3 personalities (6, 8, 13)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 26 units @ 120 V; 46 units @ 208 V; 50 units @ 230 V
• Power and Current: 63 W, 0.52 A @ 120 V, 60 Hz
• Power and Current: 65 W, 0.31 A @ 208 V, 60 Hz
• Power and Current: 66 W, 0.28 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Included

• Seetronic Powerkon IP 65 power cord
• Gel frame

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Seetronic Powerkon power linking cables
• 5-pin IP or non-IP DMX cables

COLORdash Par H7IP is an ultra compact, all-weather RGBWAUV LED wash at home in any environment. It delivers a beautifully mixed, soft field of deeply saturated colors. It features a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.
